Micaceous Iron Oxide (MIO) has widespread use in protective coatings due to its outstanding anti-corrosive properties. A less obvious use for MIO is as a replacement for zinc dust in zinc-rich primers. |
|
|
Figure 1: Influence of PVC and Ratio of Zn Dust and MIO

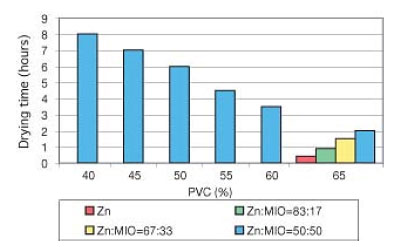

Results of Drying Time
|
In tests of single-layer coatings and paint systems in two corrosive environments, it was found that a partial replacement of spherical zinc dust with micaceous iron oxide is advantageous from both an ecological and a cost perspective. The MIO positively influenced the adhesion of paints after exposure in corrosive cabinets.
MIO pigment is used in paints to provide long-term durability. MIO paints have been used continuously since the early 1900°C to protect steel.
MIO, also known as specular haematite and flaky haematite, is a natural mineral ore that, after it is refined, consists mainly of Fe2O3. MIO differs in form and shape from the well-known iron oxides that are used as pigments for red, yellow, brown and black pigmentation. MIO shows a flaky, lamellar structure and is dark grey with a metallic sheen. The term “micaceous” is used because the lamellar particles are similar to mica.
MIO is insoluble in water, organic solvents and alkalis and is only slightly soluble in strong acids at elevated temperatures. It is non-reactive with most chemicals and is heat-stable up to its melting point of over 1,500°C. |
MIO is used widely in protective coatings due to its outstanding anti-corrosive properties. When MIO is incorporated into a coating at an appropriate level, the flakes align parallel to the substrate surface, producing a shield or barrier of overlapping plates. The flakes are impermeable—a physical barrier is formed to the ingress of the water, oxygen and ions that corrode steel and degrade the binder system. MIO flakes are strong UV absorbers and very weather-resistant. This protects the surface of the binder system from the degrading action of UV and other weathering elements. MIO reinforces the binder matrix and increases the substrate adhesion and inter-coat adhesion. |
The size of MIO flakes (normally 40 to 50 μm long and 5 to 10 μm thick) dictates a dry-film thickness in excess of 50 μm to achieve a shield of overlapping flakes. For this reason, MIO is normally found in high-film-build intermediate and finishing coats.
Recent developments in MIO technology have led to the introduction of a range of ultra-thin pigments with a flake thickness of only 1 to 2 μm. They are increasingly being used in film applications, particularly shop primers, where they provide cost and environmental benefits. |
Ultra-thin MIO pigments can also replace zinc dust in zinc-rich primers. The unique chemical and physical properties of the pigment may produce a packing structure that would enable zinc levels to be reduced. This pigment offers formulators an opportunity to reduce environmental impact while maintaining anti-corrosion performance, and unlike many environmentally friendly technologies at a significantly reduced formulation cost. |
|
Primers Based on Spherical Zinc Dust and MIO
|
|
|
Figure 2: Influence of PVC and Ratio of Zn Dust and MIO

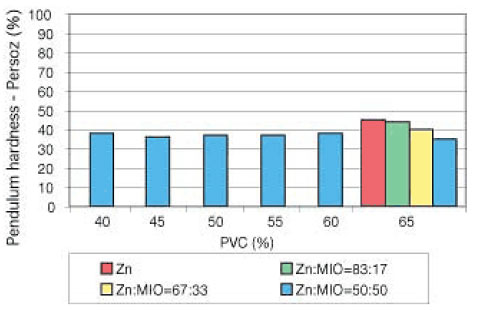

Results of Pendulum Hardness (after 28 days) |
|
Figure 3: Influence of PVC and Ratio of Zn Dust and MIO

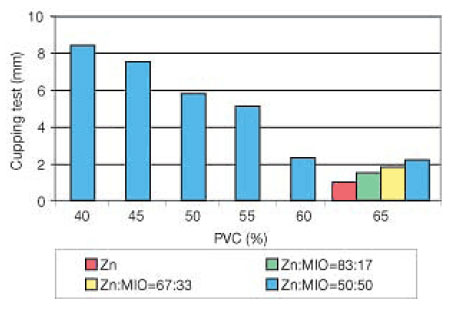

Results of Cupping Test (after 28 days) |
|
Figure 4: Influence of PVC and Ratio of Zn Dust and MIO
Results of Pendulum Hardness (after 28 days) |
|
The preparation of zinc-rich primers was based on a semi-solid epoxy resin, a poly-aminoamide adduct-like hardener, spherical zinc dust and the MIO.
Paints were formulated with a pigment volume concentration (PVC) from 40 to 65%; the volume ratio of zinc dust and MIO was 1:1. The partial replacement of spherical zinc dust by MIO was examined with PVC = 65%; the ratio between spherical zinc dust and MIO was changed to 83:17, 67:33 and 50:50, respectively. A pearl mill was used for preparing the primers. |
The basic properties of paint films were evaluated. The anti-corrosive effect of single-layer paints and the paint systems were also determined. Such characteristics as drying time, pendulum hardness, cupping test, impact resistance, bending test and adhesion were tested over four weeks. |
New degreased and ground steel panels were used for the tests. The size of the panels was 100 x 150 x 1 mm. Single-layer coatings of zinc-rich epoxy primers with a dry thickness of 60 ± 5 μm were prepared. Protective paint systems consisted of one coat of zinc-rich epoxy primer and two-component acrylic polyurethane as the finish coat (dry-film thickness of 160 ± 15 μm). In all cases, the panels were prepared in triplicate and stored for four weeks for hardening at 23 ±2°C and 50 ±5 % relative humidity. |
The single-layer coatings and the paint systems were exposed to:
1. Salt-spray (fog) testing according to ISO 9227
2. Humid atmospheres containing SO2 cyclic accelerated corrosion tests: eight hours in a humidity cabinet with SO2 and 16 hours in the ambient atmosphere—ISO 3231. |
Anti-corrosive protection of the paint systems was evaluated according to ASTM D 1654–92, D 610–85 and D 714–87. Heubach rating was used for testing of anti-corrosive effects — 100 is the best and 0 is the worst.
The adhesion of the paint systems was evaluated as cross cut test ISO 2409. The adhesion was tested before the beginning of corrosion tests and after completion of these tests. |
|
The Properties of Cured Paints
|
|

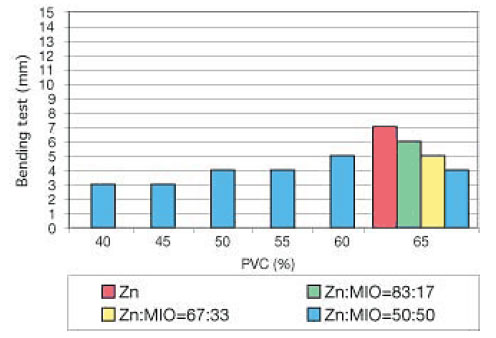

Figure 5: Influence of PVC and Ratio of Zn Dust and MIO
Results of Bending Test (after 28 days) |
The PVC and the mutual ratio of spherical zinc dust and MIO influenced the drying time considerably. Primers based on a combination of spherical zinc dust and MIO (1:1) with a PVC of 40% needed the longest time for this stage: eight hours (Figure1). The pendulum hardness was lower when the content of MIO increased (Figure 2).
|
Micaceous Iron Oxide positively influenced the mechanical properties of the films. The coatings prepared from primers based on the combination of spherical zinc dust and MIO had excellent impact resistance (Figure 3). The results of the cupping test and the bending test deteriorated step by step at the range of PVC from 40 to 65 (Figures 4 and 5). |
It follows from the results of testing the primers with PVC = 65% that the higher the content of MIO, the better the impact resistance, the better cupping test results and the better the bending test. All coatings produced excellent adhesion. |
| |
The Anti-corrosive Effect
|
|

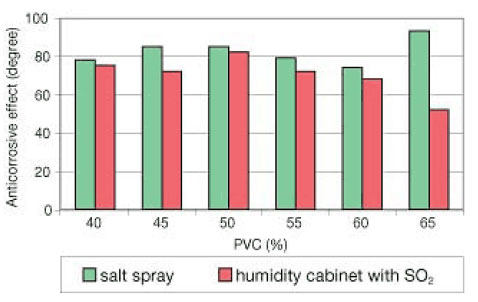

Figure 6: Anti-corrosive Effect of Single Layer Zinc-Rich Primers — Zn: MIO = 50:50
Results of Drying Time
|
|
|

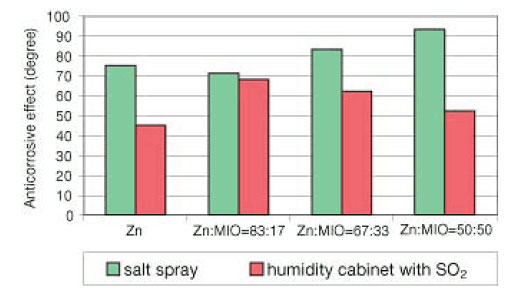

Figure 7: Anti-corrosive Effect of Single-Layer Zinc-Rich Primers – PVC = 65%
Results of Pendulum Hardness (after28 days)
|
| |
Salt spray (fog) test—It follows from the results of testing single-layer primers exposed to salt spray that the content of MIO and PVC significantly influenced the anti-corrosive effect. The anti-corrosive effect at the range of PVC from 40 to 50% first increased and then decreased when PVC was 55% and 60%. The best anti-corrosive effect was found in the formulation with PVC at 65%, at a combination of spherical zinc dust and MIO of 50% each.
|
The barrier mechanism of lamellar MIO probably played a greater role than the electrochemical mechanism of zinc dust and later barrier mechanism of the zinc corrosion products (Figures 6 and 7). A similar trend was observed with the paint systems (Figures 8 and 9). Differences in anti-corrosive effects were lower in the case of paint systems because the results were influenced by the top coat.
|
Humidity cabinet with sulphur dioxide—It follows from the results of testing single-layer paints exposed to a humidity cabinet with SO2 (Figure 6) that the barrier mechanism of the binder is evident at PVC = 40%. The optimal anti-corrosive effect is achieved at PVC = 50% when the anti-corrosive effect had a degree 82. As PVC was increased, the film became more porous and the anti-corrosive effect decreased. Single-layer paints from the primer based on spherical zinc dust only provided a low anti-corrosive effect—degree 45 (Figure 7).
|
| |
|

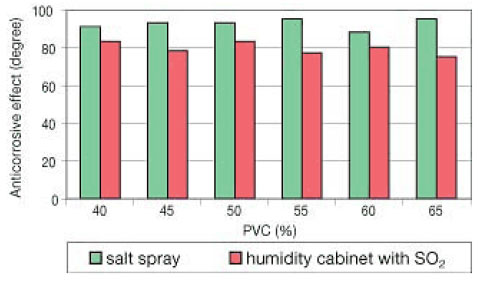

Figure 8: Anti-corrosive Effect of Paint Systems – Zn: MIO = 50:50

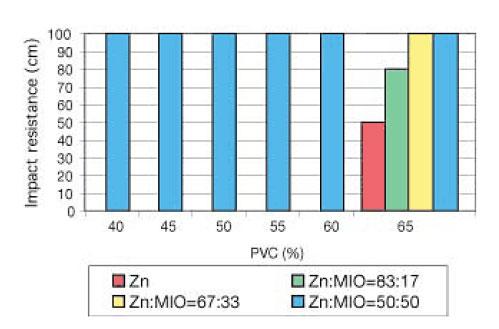

Results of Impact Resistance (after 28 days)
|
|

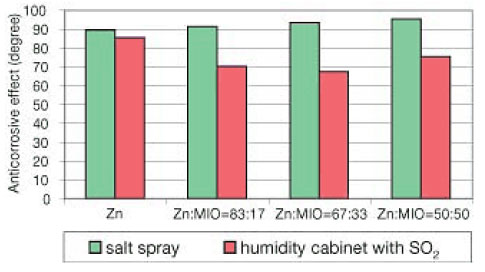

Figure 9: Anti-corrosive Effect of Paint Systems – PVC = 65%
Results of Cupping Test (after 28 days)
|
|
The humidity cabinet test with SO2 showed the best anti-corrosive effect formulation at PVC 50% when the combination of half spherical zinc dust and half MIO was used. The PVC, the barrier mechanism of micaceous iron oxide, the electrochemical process and the solubility of the zinc corrosion products influenced the anti-corrosive effect of single-layer paints. (For example: the water solubility of ZnSO4. 7H2O is Ca 1680 g/l and the water solubility of ZnCO3 is 10 mg/l). |
It follows from the results of testing paint systems that the top two-component polyurethane enamel influenced the anti-corrosive effect significantly (Figures 8 and 9).
All paint systems had excellent adhesion before the testing in corrosion chambers (degree 0). The adhesion of the paint system with the spherical zinc dust only was worse after 1,512 hours of exposure in both corrosion environments (degree 2). The paint systems containing MIO had excellent adhesion after completion of the corrosion tests.
|
Sidebar : Results at a glance |
The drying time of zinc-rich primers containing MIO was longer and hardness was lower, but impact resistance, cupping test and bending test results were better.
The formulation based on the combination of spherical zinc dust with the MIO at the ratio 1:1 and PVC = 50% had the best anti-corrosive effect. MIO positively influenced the adhesion of paints after the exposition in corrosive environments. |
It was possible to reduce the content of zinc dust in dry film to 49.8% by weight; 45% by weight of zinc dust could be compared with zinc-rich primer based on spherical zinc dust only.
These results document that the use of micaceous iron oxide in the formulation of zinc-rich primers is advantageous for both ecological and price reasons. A partial replacement of spherical zinc dust by micaceous iron oxide is advantageous. |
